VIPER Remote Control Systems
VIPER- S1M / VIPER S2M (230Vac Powered Receivers)
Please Note: During Learn and Erase the relays operate at high speed. They should be isolated from sensi-
tive equipment during this process.
To Pair a Transmitter button to receiver Output Relay #1
1.
2.
3.
5.
6.
7.
8.
Apply power the receiver and wait 10secs for the unit to enter ‘normal operation’ mode.
Switch the receiver unit OFF and then ON again in ~1sec intervals FOUR times finally leaving the unit
powered.
After 5 seconds the receiver emits a single ‘buzz’ The unit is now in ‘learn’ Mode
Press the chosen transmitter button.
The receiver will acknowledge by sounding the a single ’buzz’
Press the same transmitter button again, to confirm OK. The receiver will “buz” again to confirm.
Learn Process complete. After 10 seconds the unit will return to ‘normal operation’ mode.
To Pair a Transmitter button to receiver Output Relay #2
1.
2.
3.
5.
6.
7.
8.
Apply power the receiver and wait 10secs for the unit to enter ‘normal operation’ mode.
Switch the receiver unit OFF and then ON again in ~1sec intervals SIX times finally leaving the unit
powered.
After 5 seconds the receiver emits a double ‘buzz’ The unit is now in ‘learn’ Mode
Press the chosen transmitter button.
The receiver will acknowledge by sounding the a double ’buzz’
Press the same transmitter button again, to confirm OK. The receiver will double “buzz” again to
confirm.
Learn Process complete. After 10 seconds the unit will return to ‘normal operation’ mode.
Erasing Receivers Memory
1.
2.
3.
4.
Power the receiver unit up and wait 10 seconds for the unit to enter ‘normal operation’ mode.
Switch the unit off and then on again at ~1 second intervals TEN times, leaving the unit powered.
Wait 5 seconds until a ‘clicking’ sound is heard for a period of 10 seconds.
Wait 10 seconds for the receiver unit to return to ‘normal’ mode

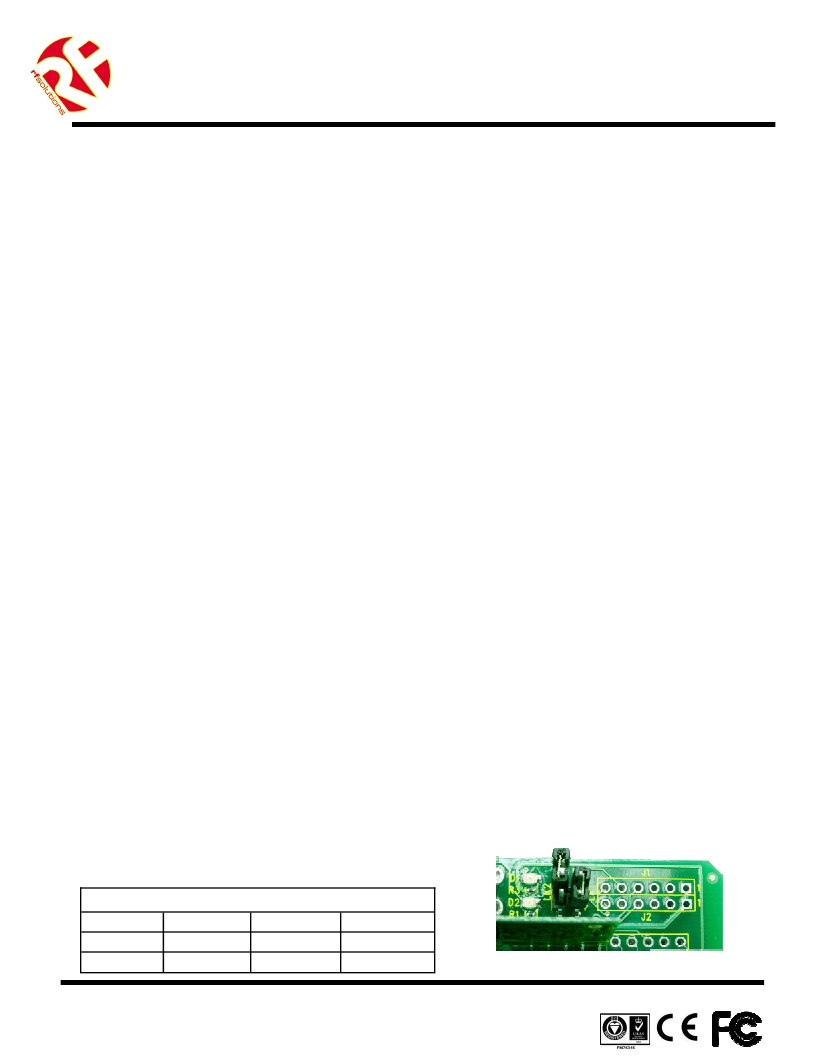

Configuring Receiver Outputs
The Jumper links configure the outputs to be Momentary or Latching.
The Jumper links are made/removed by the small link ‘cap’ placed
over the pin header.
Link Positions - Relay Outputs
LK1
Open
Relay #1
Mom
LK2
Open
Relay #2
Mom
Closed
Latch
Closed
Latch
(the above image shows, RLY2 Momentary, RLY1 Latched)
DS VIPER-4
?2009 REG No 277 4001, Lewes, England. Page 5
